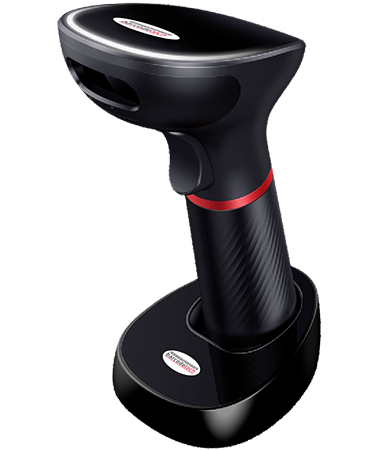

2D Bluetooth Barcode Scanner
BT-1062
Wireless Barcode Scanner
Fast-responding High-Speed Barcode Scanner
With memory, can store 100,000 EAN-13 barcode
Long working time: one full charge support 60,000/times scan
Support update online, more convenient for after-sales service
Flexible in reading 1D&2D code (including colored, stained and fuzzy code)
Download
Catalogue
Specification
| Specification | Descriptions |
| Model | BT-1062 |
| Performance | |
| Image Sensor: | CMOS - Area Imager |
| Light Source: | White LED (lighting) Red LED (aiming) |
| CPU: | 32bit ARM |
| COMS Resolution: | 640x480 pixels |
| Min. Scan Width: | 10mm |
| Min. Scan Distance: | 30mm |
| Max. Scan Distance: | 1D: 30mm to 600mm / 2D: 30mm to 250mm, (13mil UPC / EAN 100%, PCS 90%) |
| Exposure: | Global exposure - Omnidirectional |
| Scan Speed: | 60 fps |
| Resolution: | 3mil |
| Contrast: | PCS 25% |
| Scan Angle: | 360 ° rotation, 65 ° inclination, 60 ° elevation |
| Scan Mode: | Manual trigger and automatic induction |
| Communication methods: | 2.4G wireless communication, Bluetooth wireless communication |
| Communication Distance: | 2.4G mode: 150M (open space), Bluetooth mode: 10M (open space) |
| Recharge Method: | Basic contact charging and Micro USB cable charging |
| Recharge Time: | 4.5h |
| Standby Time: | 6 months (dormant) |
| Continuous Battery Life: | 16h |
| Battery: | Replaceable, rechargeable lithium battery, 2200mAh |
| Voltage (Input): | 5 VDC +/- 0,5 VDC |
| Current (Operation): | 250mAh |
| Stand-by Current: | <1uA |
| Scanning on Screen: | Allows reading on monitors and Smartphone screens |
| Interface | |
| Interfaces: | USB, USB-VCP |
| Decoding | |
| 1D: | Codabar, Code 11, Code 39, Code 32, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 93, Code 128, GS1-128, UPC-A, UPC-E, EAN 8, EAN 13, GS1 DataBar (RSS14), GS1 DataBar Limited, GS1 DataBar Expanded and more.(Internet Banking - FEBRABAN, for Brazilian version only). Allows barcode scanning with more than 60 characters. |
| 2D: | PDF417, Micro PDF417, QR Code , Micro QR, Data Matrix, Aztec Code |
| Physical Characteristics | |
| Dimensions: | Scanner: C x L x A = 163 x 68 x 80 (mm) / Recharge Base: C x L x A = 92 x 73 x 35 (mm) |
| Material: | ABS+TPU |
| Weight: | Scanner: 185g / Recharge Base: 220g |
| Indicators: | Adjustable Beep and BT communication lights, Wi-Fi communication and battery charge. |
| Standard Base Cable: | 1.6 meters |
| Environmental | |
| Temperature: | Operation 0 ° C to 50 ° C / Storage -40 ° C to 70 ° C |
| Humidity: | Relative humidity 5% -95% (non-condensing) |
| Lighting: | 0-5000Lux (fluorescence), 0-100,000 Lux (sunlight) |
| Documents | |
| Documents: | Programming Manual and Quick Reference Guide |
| Compatibility | |
| Compatible to: | Windows 98, 2000, XP, ME, Windows 7, 8, 10 (32&64bits) and Linux (Plug and Play) |
| Regulations | |
| Regulations: | FCC, CE, RoHS and ANATEL |
| Warranty | |
| 1 year | |
