Area Imager Barcode Scanner 2D
BT-1162

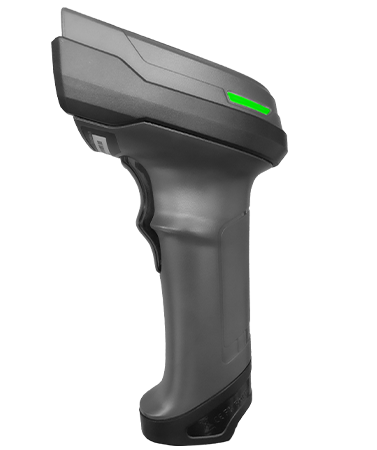

Hand-held Wireless Barcode Scanner
High speed and fast response barcode scanner

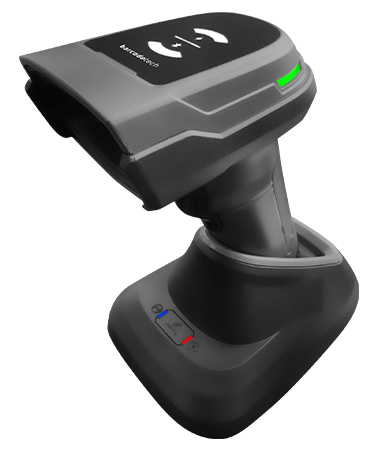

BT-1162 is a robust and efficient barcode scanner designed to meet the needs of scanning 1D and 2D codes in a variety of environments. Equipped with Bluetooth wireless communication technology and a pairing base with a range of up to 150 meters in open space, it offers flexibility and mobility during use.
It has a 2200mAh lithium battery, ensuring up to 6 hours of continuous operation. In addition, the scanner is compatible with popular operating systems, including Windows, MacOS, Linux and mobile devices with Android or iOS, making it a versatile solution for various commercial and industrial applications.
Download
Catalogue
Specifications
| Specifications | Description |
| Model | BT-1162 |
| Performance | |
| Tecnology: | CMOS. |
| Light source: | Green light (Scan), White light (bright). |
| MTBF: | 100.000 hours. |
| Scan mode: | Manual, continuous or automatic activation on support. |
| Usability: | Plug and Play. |
| Image resolution: | 640x480 pixels. |
| Scan speed: | 60 fps/s. |
| Depth of field: | Code 39 (5mil): 7 a 16 cm, Code 39 (13mil): 7 a 32 cm, QR code (15mil): 3 a 18 cm, Code 128 (20mil): 6 a 35 cm. |
| Min. resolution: | ≥3mil. |
| Scan angle: | Rotation 360°, tilt ±65°, deflection ±65°. |
| Scan direction: | Omnidirectional. |
| Print contrast: | PCS: 20%. |
| Scan on screens: | Allows reading directly on the monitor and smartphone screen. |
| Operating voltage: | 5 VDC +/- 0.25 VDC. |
| Operating current: | less than 300mAh. |
| Standby current: | less than 35mAh. |
| 2.4GHz Communication distance: | Up to 150 meters in open space. |
| Bluetooth Communication distance: | Up to 10 meters in open space. |
| Interface | |
| Interfaces: | USB-HID, USB-COM, 2.4GHz and Bluetooth. |
| Batery | |
| Type: | 2200mAh rechargeable lithium battery (guarantees 16h of continuous work). |
| Charger: | Charging base or USB C cable (optional). |
| Charging time: | Approximately three hours. |
| Duration in stand-by mode: | up to 6 months. |
| Decoding | |
| 1D: | Codabar, Code 11, Code 39, Code 32, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 93, Code 128, GS1-128, UPC-A, UPC-E, EAN 8, EAN 13, GS1 DataBar (RSS14), GS1 DataBar Limited, GS1 DataBar Expanded and more. Allows scanning barcodes with more than 60 characters. |
| 2D: | PDF417, Micro PDF417, QR Code, Micro QR, Data Matrix, Aztec Code. |
| Internet Banking: | Febraban and Danfe compatible. |
| Physical Characteristics | |
| Dimentions: | L × W × H: 174mm × 65,7mm × 83,5mm. |
| Material: | ABS+PC. |
| Weight: | 185g (scanner) 220g (scanner with charging base). |
| Indicators: | Adjustable beep (volume) and LED light (green). |
| Cable: | 1m. |
| Environmental Characteristics | |
| Operating temperature: | -20°C a 50°C. |
| Storage temperature: | -40°C a 70°C. |
| Humidity: | 5% to 95% relative humidity, non-condensing. |
| Light levels: | 0-100,000 Lux. |
| ESD Protection: | 16KV. |
| Drop resistance: | 3m. |
| Sealing: | IP54 and sealed to resist airborne particles. |
| Documents | |
| Documents: | Programming manual and quick reference guide. |
| Compatibility | |
| Compatible with: | Windows 98, 2000, XP, ME, Vista, Windows 7, 8, 10, 11 (32 and 64 bits), macOS, Linux, Android and IOS. |
| Regulations | |
| Safety and approvals: | BT-1162 has safety certifications and regulatory approvals required for protected use. |
| Compliances: | CE, FCC, DOC. |
| Environmental compliance: | RoHS. |
| Acessories | |
| Included: | Removable USB cable and 2.4GHz wired charging base. |
| Warranty | |
| Warranty: | 1 year. |
