2D Barcode Reader

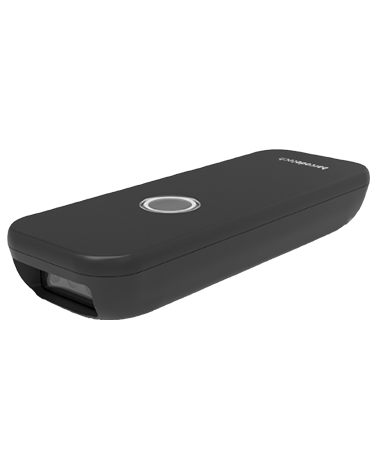

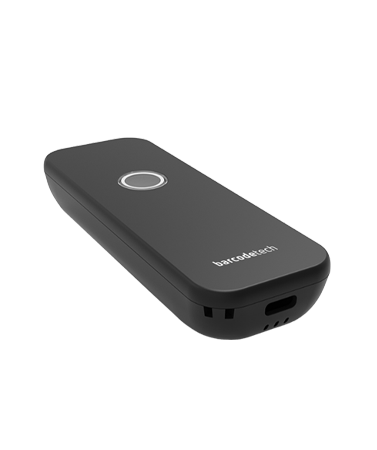

BT-220
Mini 2D Barcode reader
High speed and fast response barcode scanner
BT-220 is a compact barcode reader that fits in your pocket. It scans 1D and 2D codes, operating in Bluetooth and 2.4GHz modes. The battery can last up to 15 hours of continuous work. Suitable for: warehouses, logistics, retail and pharmacies.
Download
Catalogue
Specifications
| Specifications | Description |
| Model | BT-220 |
| Performance | |
| Tecnology: | CMOS. |
| Light source: | Red LED (scan), white LED (light). |
| Scan mode: | Manual and continuous. |
| Scan direction: | Ominidirecional. |
| Memory capacity: | 16MB, capable of storing up to 26 million characters. |
| Image resolution: | 640x480 pixels. |
| Scan speed: | 30 fps. |
| Depth of field: | 65 to 270mm (13mil PCS 90%). |
| Min. resolution: | 4mil. |
| Scan angle: | Rotation 360°, tilt ±65°, deflection ±60°. |
| Print contrast: | PCS: 25%. |
| Scan on screen: | Allows scanning on the screen of monitors and smartphones. |
| Processor: | ARM. |
| Operating current: | 185mAh. |
| Static current: | 85mAh. |
| 2.4GHz communication distance: | Up to 100 meters in open space. |
| Bluetooth communication distance: | Up to 10 meters in open space. |
| Interface | |
| Interfaces: | USB 2.0, USB-VCP, 2.4GHz and Bluetooth 4.2 HID | BLE | SPP. |
| Battery | |
| Battery: | 1500mAh rechargeable lithium battery. |
| Battery Charger: | Charging USB C cable, 5V DC output. |
| Charging time: | approximately four hours. |
| Stand-by: | up to 6 months. |
| Decoding | |
| 1D: | 1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39, Code 32, Codabar (NW-7), Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5 (IATA), Code 11, MSI Plessey. |
| 2D: | QR Code, Micro QR Code, Data Matrix, PDF 417. |
| Physical Characteristics | |
| Scanner size: | L × W × H: 110mm × 40mm × 18.6mm. |
| Receiver size: | L × W × H: 14mm × 18mm × 6mm. |
| Material: | high impact ABS+PC. |
| Weight: | 66g. |
| Indicators: | LED (red, blue and green) and buzzer with adjustable tone. |
| Button: | A multifunction power/scan button.. |
| Environmental Characteristics | |
| Operating temperature: | -10°C to 50°C. |
| Storage temperature: | -20°C to 60°C. |
| Humidity: | 5% a 95% de non-condensing. |
| Light Levels: | 0-100,000 Lux. |
| Drop resistence: | 1.5m. |
| Sealing: | IP42 and sealed to resist suspended particles. |
| Documents | |
| Documents: | Programming manual and quick reference guide. |
| Compatibility | |
| Compatible with:: | Windows 98, 2000, XP, ME, Vista, Windows 7, 8, 10, 11 (32 e 64 bits), macOS, Linux, Android and IOS. |
| Regulations | |
| Security and approvals: | BT-220 has safety certifications and regulatory approvals required for protected use. |
| Compliances: | CE, FCC, DOC. |
| Environmental compliance: | RoHS. |
| Accessories | |
| Include: | USB-C cable, USB dongle and wrist strap. |
| Warranty | |
| Warranty: | 1 year. |
