2D Desktop Scanner

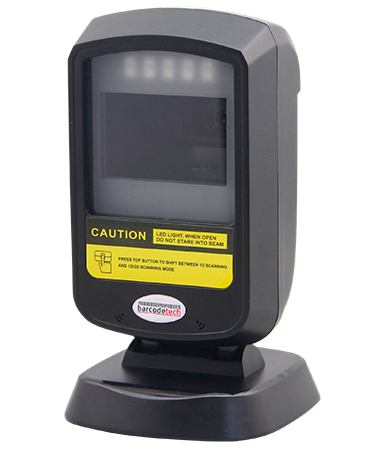

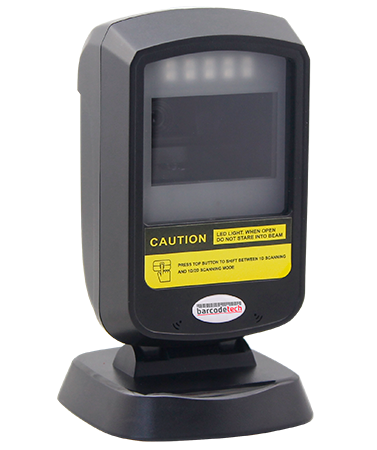

BT-2200
Desktop Barcode Scanner
Fast-responding High-Speed Barcode Scanner
Aggressive reading of barcodes, on highly reflective surfaces or normal
printing codes;
Multiple common interfaces allow easy integration into different devices;
Support automatic detection and wake up scanner to read;
Boost customer services with good ability to scan the virtually mobile barcode
on various types of display;
A perfect solution for the medical industry, retail stores, smartphone and the banking
industry applications.
Download
Catalogue
Specification
| Specification | Descriptions |
| Model | BT-2200 |
| Performance | |
| Tecnology: | Area Imager 1D/2D |
| Light Source: | Red LED (illumination), 650mn +/- 10nm |
| CPU: | 32bit MIPS @1G Hz |
| Scan Mode: | continuous and automatic |
| Image Resolution: | 640x480 pixel |
| Scan Speed: | 60 fps/s |
| Deph of Field: | (2D) 0-150mm@(13mil UPC/EAN 100%,PCS=90%) (1D) 0-400mm@(13mil UPC/EAN 100%, PCS 90%) |
| Minimum Resolution: | ≥4mil |
| Scanning Angle: | deflection 360 °, inclination ± 62 °, rotation ± 60 ° |
| Scan Direction: | Omnidirectional |
| Contrast: | PCS: 25% |
| Symbology Selection Button: | Red LED (1D only) - Blue LED 1D / 2D |
| Reading on Screen: | Allows reading directly on the monitor and Smartphone screen |
| Operating Voltage: | 5 VDC +/- 0.5 VDC |
| Operating Current: | less than 200mA |
| Stand-by Current: | less than 150mA |
| Standard Cable: | 2m |
| Interface | |
| Interfaces: | USB 2.0 USB-VCP Serial Port RS232 |
| Decoding | |
| 1D: | UPC,EAN,Code 39 (complete ASCII),Codabar, Code128, Code 93, Code 11, Interleaved 2 of 5, Industrial 2 of 5; Matrix 2 of 5, MSI Plessy, GS1 DataBar and other symbolgies |
| 2D: | PDF417, Data Matrix, QR Code. |
| Physical Characteristics | |
| Dimensions: | L× W × H: 84.6mm × 82.6mm × 145.9mm |
| Material: | ABS + PC high impact and flame retardant material |
| Base: | Articulated base |
| Color: | Black |
| Weight: | 255g without cable and (345g with USB cable) |
| Indicators: | Adjustable beep (tone / height and LEDs (blue and red) |
| Environmental | |
| Operating Temperature: | 0°C to 50°C |
| Storage Temperature: | -20°C to 60°C |
| Humidity: | 5% to 95% relative humidity, no condensation |
| Light Levels: | 0-5000 LUX (internal), 0-100,000 LUX (sun light) |
| Drop Test: | 1m |
| (Sealed to resist suspended particles) | |
| Documents | |
| Documents: | Programming Manual and Quick Reference Guide |
| Compatibility | |
| Compatible to: | Windows 98, 2000, XP, ME, Vista, Windows 7, 8, 10 (32&64bits) and Linux (Plug and play) |
| Regulations: | |
| Regulations: | CE, FCC, DOC, RoHS compliance |
| Warranty | |
| 1 year | |
