2D Barcode Scanner

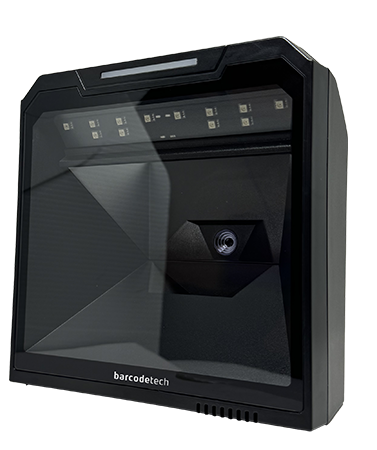

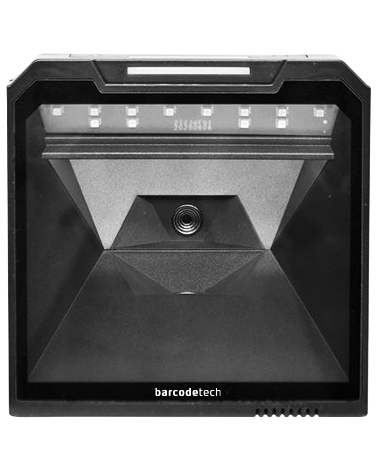

BT-3300 Plus
Desktop Barcode Scanner
High speed and fast response barcode scanner.
Sophisticated technology;
Fast and accurate reading of 1D and 2D codes;
Can read from a greater distance and with a wider angle;
High speed and a low error rate;
Suitable for supermarkets and retail stores;
Compatible with Windows, Linux, Android and macOS;
Scan mode for only 1D codes, avoiding scan adjacent 2D codes;
Allows scanning directly on the monitor or smartphone screen. It also scans on paper and codes on film;
Excellent barcode scan on transparent surfaces;
Three optional reading tones;
Soft scan light suitable for eyes.
Download
Catalogue
Specification
| Specification | Description |
| Model | BT-3300 Plus |
| Performance | |
| Technology: | Area Imager. |
| Light source: | Blue LED (illumination), red LED (scanning) 650mn +/-10nm. |
| MTBF: | 100,000 hours. |
| Scan mode: | Continuous and automatic. |
| Image resolution: | 1280x1080 pixels. |
| Scan speed: | 60 fps/s. |
| Depth of field: | Code 39 (5mil): 1-15cm, UPC (13mil): 1-33cm, Code 39 (20mil): 1-40cm, QR Code (20mil): 1-28cm. |
| Min resolution: | ≥4mil. |
| Scan angle: | Rotation 360°, tilt ±60°, defletion ±70°. |
| Scan direction: | Omnidirectional. |
| Print contrast: | PCS: 20%. |
| Scan: | Allows reading directly on the monitor and smartphone screen. It also scans paper and film codes. |
| Operating voltage: | 5 VDC +/- 0.25 VDC. |
| Operating current: | Less than 200mAh. |
| Standby current:: | Less than 150mAh. |
| Motion Tolerance: | 3.8m/s. |
| Interface | |
| Interfaces: | Removable USB; USB-VCP; RS-232 serial port. |
| Decoding | |
| 1D: | UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN (Bookland EAN), ISSN, Code 39, Code 39 full ASCII, Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5 (Discrete 2 of 5), Matrix 2 of 5, Codabar (NW7), Code 128, UCC/EAN 128, ISBT 128, Code 93, Code 11 (USD-8), MSI/Plessey, UK/Plessey, China Post, China Finance, Telepen, GS1 DataBar (formerly RSS) variants, PDF417, FEBRABAN, DANFE |
| 2D: | PDF417,MicroPDF417, QR-code, MicroQR, Data Matrix, QR,Aztec. |
| Physical Characteristics | |
| Dimensions: | L× W × H: 83mm × 150mm × 150mm. |
| Material: | High impact ABS+PC with flame retardant material. |
| Color: | Black. |
| Weight: | 576g without cable. |
| Indicators: | Adjustable beep tone/volume and LED light (blue and red). |
| Buttons: | BT-3300 Plus has a button to switch between different tones and a button to switch between reading 1D, 1D and 2D or 2D codes only. |
| Cable length: | 1.8 m. |
| Environmental Characteristics | |
| Operating Temperature: | -20°C to 55°C. |
| Storage temperature: | -20°C to 60°C. |
| Humidity: | 5% to 95% relative humidity, non-condensing. |
| Light Levels: | 0-70.000 Lux. |
| ESD protection: | 16KV. |
| Drop resistance: | 1.5m. |
| Sealing: | IP54 and sealed to resist suspended particles. |
| Documents | |
| Documents: | Programming manual and quick reference guide. |
| Compatibility | |
| Compatible with: | Windows 98, 2000, XP, ME, Vista, Windows 7, 8, 10, 11 (32 and 64 bits), MacOS, Linux, Android and IOS. |
| Regulations | |
| Security and approvals: | BT-3300 Plus has the safety certifications and regulatory approvals required for protected use. |
| Compliances: | CE, FCC, DOC. |
| Environmental compliance: | RoHS. |
| Accessories | |
| Included: | Removable USB cable. |
| Warranty | |
| Warranty: | 1 year. |
