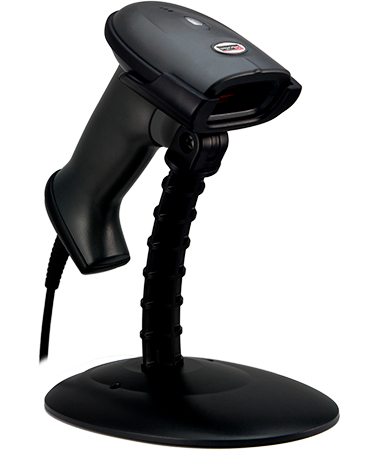

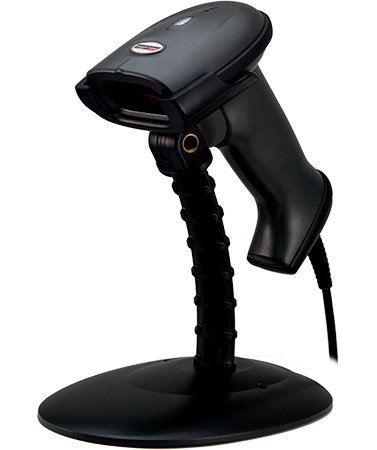

1D Handfree Barcode Scanner
BT-901
Hand-held Barcode Scanner
Fast-responding High-Speed Barcode Scanner
Rugged and stylish design;
Quick and fluent reading performance;
Laser scanner with auto scan and bracket;
Bracket disassembled to saving shipping cost;
With IP54 waterproof and dustproof protection.
Download
Catalogue
Specification
| Specification | Descriptions |
| Model | BT-901 |
| Performance | |
| CPU: | 32 bits (RISC) |
| Light Source: | 650nm +/- 10nm laser (Peak power 0.96mW) - Red |
| Scan (Standard): | Single Beam |
| Scan Speed: | 300 scans/s |
| Resolution: | 3mils |
| Scan Width: | 10mm@ of reading window to 220mm |
| Deph of Field: | 0 – 500mm (0.33mm PCS 90%) |
| Elevation Angle: | 65° |
| Deflection Angle: | 55° |
| Print Contrast: | PCS 10% UPC/EAN 100% |
| Scan Mode: | Manual and Automatic (auto sense) |
| MTBF: | 100,000 hours |
| Operating Voltage: | 5VDC +/- 0.5VDC |
| Operating Current: | 85mA |
| Standby Current: | 30mA |
| Laser Class: | Meets national and international regulations |
| Cable: | 2 meters |
| Interface | |
| Interfaces: | USB 2.0 RS 232 (Optional) PS-2(Kb) (Optional) |
| Decoding | |
| 1D: | Code 39, Full ASCII, Code 39, Code 32, Code 128, Code 128 Full asc, Discreet 2 of 5, Code 11, Chinese 2 of 5, Code 93, Code 11, Codabar/NW7, All UPC/EAN/JAN Code (EAN-13, EAN-8, UPC-A, UPC-E, EAN 128), Interleaved 2 of 5, STD 2 of 5, Pharma Code, Industrial 2 of 5, GS1 Databar, 128, Matrix 2 of 5, Code 39 quarter, Chinese Postage Code, IATA, MSI / PLESSY, ISBN, Variants, RSS, Telepen and more. (Internet Banking - FEBRABAN, for Brazilian version only). Allows barcode reading with more than 60 characters. |
| Physical Characteristics | |
| Dimensions: | (L × W × H): 175mm × 73mm × 102mm |
| Material: | ABS+PC high impact |
| Color: | Black |
| Weight: | 246g with USB cable |
| Indicators: | Adjustable beep and Leds (red on and green for good reading) |
| Environmental | |
| Operating Temperature: | 0°C to 50°C |
| Storage Temperature: | -40°C to 70°C |
| Humidity: | 5% to 95% relative humidity, non-condensing |
| Light Levels: | Day Light, 3000-8000 LUX |
| ESD Protection: | 16KV |
| Drop Test: | 1.5m |
| Sealing: | IP54 and sealed to resist suspended particles |
| Documents | |
| Documents: | Programming Manual and Quick Reference Guide |
| Compatibility | |
| Compatible to: | Windows 98, 2000, XP, ME, Vista, Windows 7, 8, 10 (32&64bits) and Linux |
| Optional Accessory: | |
| Accessory: | Adjustable Support |
| Regulations | |
| Safety and Approvals: | BT-901 has safety certifications and regulatory approvals necessary for protected use. |
| Environmental Compliance: | RoHS |
| EMC: | FCC part 15 class B, CE, EN 60825-1 (94/96), EN 55022 Class B |
| Warranty | |
| 1 year | |
