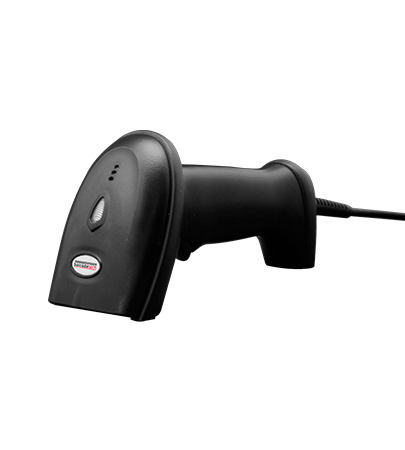

2D Image Handheld Scanner
BT-902
Hand-held Barcode Scanner
Fast-responding High-Speed Barcode Scanner
Good performance on both display and printed label reading;
2 in 1 Combo Interface that easily changes interface by replacing cable;
High-density 1D & 2D codes commonly printed on medicine packageing;
Designed especially for retail, health-care and payment settings;
Plug-and-play interfaces enable the scanner to be used with different host devices.
Download
Catalogue
Specification
| Specification | Descriptions |
| Model | BT-902 |
| Performance | |
| Light Source: | Red LED (marking light), white LED (lighting) |
| Image Sensor: | CMOS technology |
| Scan Mode: | Manual and continuous |
| Image Resolution: | 640x480 pixels |
| Scan Speed: | 30 fps/s |
| MTBF: | 100,000 hours |
| Screen Reading: | Allows reading directly on the monitor or smartphone screen |
| Min. Resolution: | 3mils |
| 1D reading Minimum Width: | 10mm@ of the reading window |
| Deph of Field: | 1D: 30 ~ 220mm (PCS 90%) - 2D: 30 ~ 150mm (PCS 90%) |
| Print Signal Contrast: | PCS 15% |
| Scan Angle: | Rotation: 360 °, Tilt: ± 50 °, Deflection: ± 50 °, Angle of Field of View: horizontal 36 ° / vertical 23 ° |
| Operating Voltage: | 5VDC +/- 0.5VDC |
| Operating Current: | 230mA |
| Standby Current: | 150mA |
| Smooth Cable: | 2 meters |
| Interface | |
| Interfaces: | USB 2.0 RS 232 (Optional) PS-2(Kb) (Optional) |
| Decoding | |
| 1D: | UPC-A; UPC-E; EAN-13; Code 39; Codabar; Code 128; Interleaved of 5; Industrial 2 of 5; Matrix 2 of 5; Code 93; UCC/EAN 128; Code 11; MSI; UK/Plessey; ISBN/ISSN; GS1 Databar Expanded; GS1 Databar; GS1 Databar Limited. |
| 2D: | QR Code; PDF 417; Datamatrix. |
| Physical Characteristics | |
| Dimensions: | (L × W × H): 175mm × 73mm × 102mm |
| Material: | ABS+PC high impact |
| Color: | Black |
| Weight: | 240g with USB cable |
| Indicators: | Adjustable beep and blue LED (on / good reading) |
| Environmental | |
| Operating Temperature: | -10°C to 55°C |
| Storage Temperature: | -20°C to 60°C |
| Humidity: | 5% to 95% relative humidity, non-condensing |
| Light Levels: | 0-100,000 Lux |
| ESD Protection: | 16KV |
| Drop Test: | 1.5m |
| (Sealed to resist suspended particles) | |
| Documents | |
| Documents: | Programming Manual and Quick Reference Guide |
| Compatibility | |
| Compatible to: | Windows 98, 2000, XP, ME, Vista, Windows 7, 8, 10 (32&64bits) and Linux |
| Optional Accessory: | |
| Accessory: | Adjustable Support |
| Regulations | |
| Regulations: | CE & FCC DOC and RoHS compliance |
| Warranty | |
| 1 year | |
