Area Imager Barcode Scanner 2D

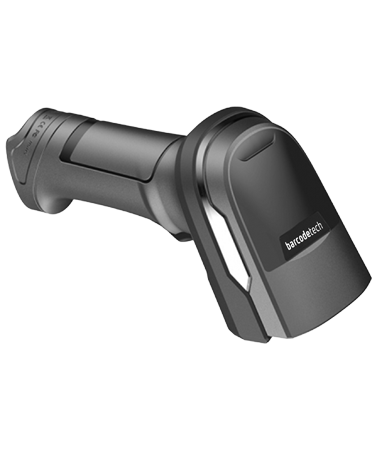

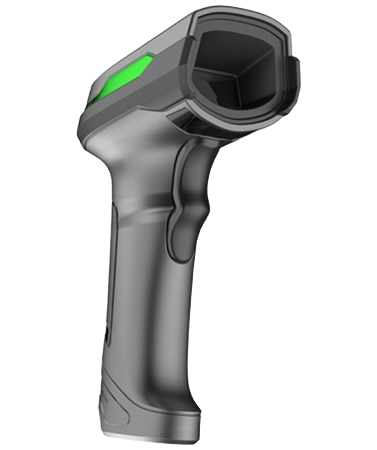

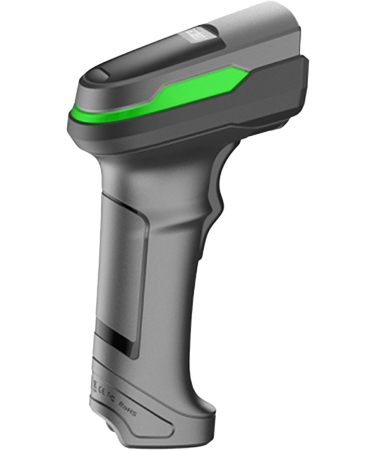

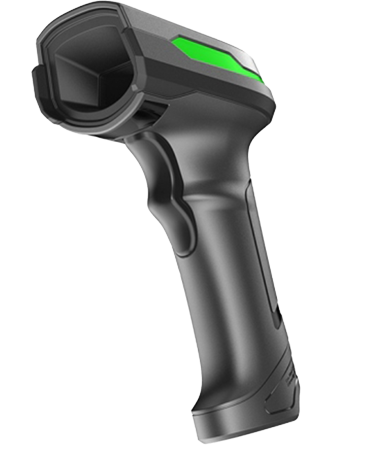

BT-902 Plus
Hand-held Industrial Barcode Scanner
High speed and fast response barcode scanner
New decoding chip allows scanning of various 1D and 2D barcodes;
Plug and Play technology, easy to set up and connect quickly;
Loud beep for operation in noisy environments;
Longer wire life.
Download
Catalogue
Specifications
| Specification | Description |
| Model | BT-902 Plus |
| Performance | |
| Technology: | Area Imager. |
| Light Source: | green LED (light). |
| MTBF: | 100.000 hours. |
| Scan mode: | Manual, continuous or automatic activation on support. |
| Usability: | Plug and Play. |
| Minimum 1D read width: | 10mm@ from the scan window. |
| Image resolution: | 1080x720 pixels. |
| Scan speed: | 120 fps/s. |
| Depth of field: | Code 39 (5mil): 7-16cm, Code 39 (13mil): 7-32cm, QR code (15mil): 3-18cm, Code 128 (20mil): 6-35cm. |
| Min. resolution: | ≥3mil. |
| Scan angle: | Rotation 360°, tilt ±70°, deflection ±75°. |
| Field of view angle: | Horizontal 39°/vertical 29°. |
| Print contrast: | PCS: 20%. |
| Scanner: | Allows scanning directly on the monitor and smartphone screen. |
| Operating voltage: | 5 VDC +/- 0.25 VDC. |
| Operating current: | 300mAh. |
| Standby current: | 35mAh. |
| Interface | |
| Interfaces: | Removable USB. |
| Decoding | |
| 1D: | UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN (Bookland EAN), ISSN, Code 39, Code 39 full ASCII, Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5 (Discrete 2 of 5), Matrix 2 of 5, Codabar (NW7), Code 128, UCC/EAN 128, ISBT 128, Code 93, Code 11 (USD-8), MSI/Plessey, UK/Plessey, China Post, China Finance, Telepen, GS1 DataBar (formerly RSS) variants, PDF417. |
| 2D: | QR Code, DataMatrix, Han Xin Code, Aztec Code, MicroQRCode, MicroPDF417, FEBRABAN. |
| Physical Characteristics | |
| Dimensions: | C × L × A: 83.5mm × 65.7mm × 174.8mm. |
| Material: | High impact ABS+PC. |
| Weight: | 130g without cable. |
| Indicators: | Adjustable beep (volume) and LED light (green). |
| Cable length: | 2 m. |
| Environmental Characteristics | |
| Operating temperature: | -20°C to 60°C. |
| Storage temperature: | -30°C to 70°C. |
| Humidity: | 5% to 95% relative humidity, non-condensing. |
| Light levels: | 0-100.000 Lux. |
| ESD Protection: | 16KV. |
| Drop resistance: | 3m. |
| Sealing: | IP54 and sealed to resist airborne particles. |
| Documents | |
| Documents: | Programming manual and quick reference guide. |
| Compatibility | |
| Compatible with: | Windows 98, 2000, XP, ME, Vista, Windows 7, 8, 10, 11 (32 and 64 bits), macOS, Linux, Android and IOS. |
| Regulations | |
| Safety and approvals: | BT-902 Plus has safety certifications and regulatory approvals required for protected use. |
| Compliances: | CE, FCC, DOC. |
| Environmental compliance: | RoHS. |
| Accessories | |
| Included: | Removable USB cable and adjustable stand. |
| Warranty | |
| Warranty: | 1 year. |
