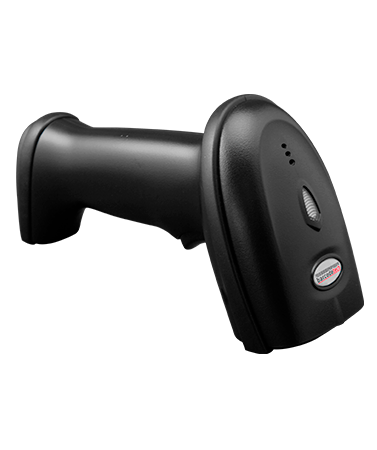

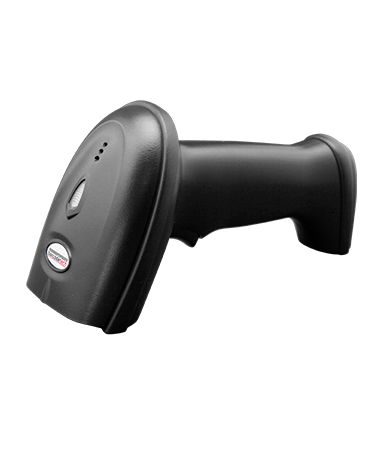

1D Bluetooth Barcode Scanner
BT-961
Wireless Barcode Scanner
Fast-responding High-Speed Barcode Scanner
No need driver, plug and play;
Bluetooth, 2.4g & USB cable mode supported;
Application：supermarket, hospital, ticket barrier, logistic,
bank etc;
Firmware support upgrade on-line;
Fast and accurate in reading 1D codes;
2200 mAh, standby 6 months (dormant).
Download
Catalogue
Specification
| Specification | Descriptions |
| Model | BT-961 |
| Performance | |
| Light Source: | Visible laser diode 650nm +/- 10nm red |
| CPU: | 32-bit ARM microprocessor |
| Sensor: | Laser |
| Scan Mode: | manual and continuous |
| Wireless: | 2.4G: 100m distance in open space; Bluetooth (4.0 HID): 10m communication distance (open space） |
| Scan Speed: | 300 scans/second |
| Resolution: | 3mils |
| Memory Capacity: | Up to 520,000 characters (40,000 EAN 13 barcode) |
| Scan Angle: | Roll:±30°, Skew:±65° |
| Deph of Field: | 0-350mm(PCS=90%) |
| Current (working): | 80mA (Operating Current), 25mA (Static Current), <1Ua (Standby Mode) |
| Battery: | Rechargeable lithium battery, 2200mAh 30h (continuous work) |
| Charging: | Micro USB cable charging (charging mode), DC5V (charging voltage), 4.5 hours (charging time) |
| Stand-by: | 6 months (dormant) |
| Transfer: | 2.4G, Bluetooth, Micro USB Cable |
| Interface | |
| Interfaces: | USB 2.0 USB-VCP (2.4G & micro USB cable mode) |
| Decoding | |
| 1D: | Code 39, Full ASCII Code 39, Code 32, Code 128, Code 128 Full asc, Discreto 2 de 5, Code 11, Chinês 2 de 5, Code 93, Code 11, Codabar/NW7, All UPC/EAN/JAN Code (EAN-13, EAN-8, UPC-A, UPC-E, EAN 128), Interleave 2 of 5, STD 2 of 5, Pharma Code, Industrial 2 of 5, GS1 Databar, 128, Matrix 2 of 5, Code 39 quarter, Chinese Postage Code, IATA, MSI / PLESSY, ISBT 128, Italian Pharmacy Code, WPC, Trioptic, ISSN, ISBN, Variants, RSS, Telepan and more.(Internet Banking - FEBRABAN, for Brazilian version only). It allows the reading of barcodes with more than 60 characters. |
| Physical Characteristics | |
| Dimensions: | L× W × H: 170mm × 73mm × 102mm |
| Material: | ABS+PC high impact |
| Color: | Black |
| Weight: | 200g with USB cable |
| Indicators: | Adjustable beep and LEDs (Green on and red on charge) |
| Environmental | |
| Operating Temperature: | -20°C to 55°C |
| Storage Temperature: | -40°C to 80°C |
| Humidity: | 5% to 95% relative humidity, non-condensing |
| Lighting: | 0-100,000 Lux |
| Drop Test: | 1.5m |
| (Sealed to resist suspended particles) | |
| Documents | |
| Documents: | Programming Manual and Quick Reference Guide |
| Compatibility | |
| Compatible to: | Windows 98, 2000, XP, ME, Vista, Windows 7, 8, 10 (32&64bits) and Linux (Plug and play) |
| Optional Accessory: | |
| Accessory: | Adjustable Support |
| Regulations | |
| Regulations: | CE, FCC, DOC, RoHS, ANATEL |
| Warranty | |
| 1 year | |
